DAC43401DSGR

• 1 LSB INL and DNL (10-bit and 8-bit)
• Wide operating range
  • Power supply: 1.8 V to 5.5 V
  • Temperature range: –40˚C to +125˚C
• PMBus™ compatible I2C interface
  • Standard, Fast, and Fast+ modes
  • Digital slew rate control
  • 1.62-V VIH with VDD = 5.5 V
• User-programmable nonvolatile memory (NVM/EEPROM)
  • Save and recall all register settings
• Programmable waveform generation: Square, ramp, and sawtooth
• Preprogrammed medical-alarm tone-generation mode: low, medium, and high priority alarms
• Internal reference
• Very low power: 0.2 mA at 1.8 V
• Flexible startup: High impedance or 10K-GND

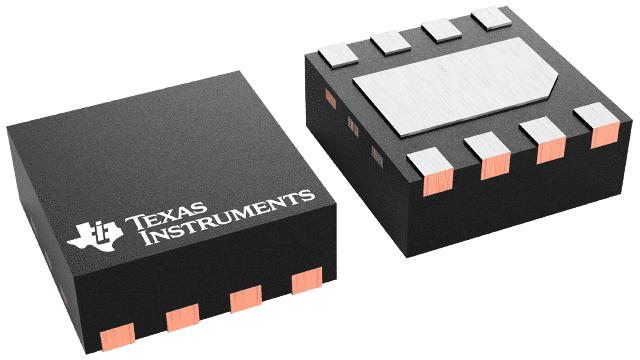

• Tiny package: 8-pin WSON (2 mm × 2 mm)

The 10-bit DAC53401 and 8-bit DAC43401 (DACx3401) are a pin-compatible family of buffered voltage-output digital-to-analog converters (DACs). These devices consume very low power, and are available in a tiny 8-pin WSON package. The feature set combined with the tiny package and low power make the DACx3401 an excellent choice for applications such as LED and general-purpose bias point generation, power supply control, digitizers, PWM signal generation, and medical alarm tone generation.

These devices have nonvolatile memory (NVM), an internal reference, and a PMBus-compatible I2C interface. The DACx3401 operates with either an internal reference or the power supply as a reference, and provides full-scale output of 1.8 V to 5.5 V. The devices communicate through the I2C interface. These devices support I2C standard mode, fast mode, and fast+ mode.

The DACx3401 are feature rich, and include PMBus voltage margin commands, user-programmable power up to high impedance, standalone waveform generator, medical alarm tone generator, dedicated feedback pin, and more.

The DACx3401 operate within the temperature range of –40°C to +125°C.
