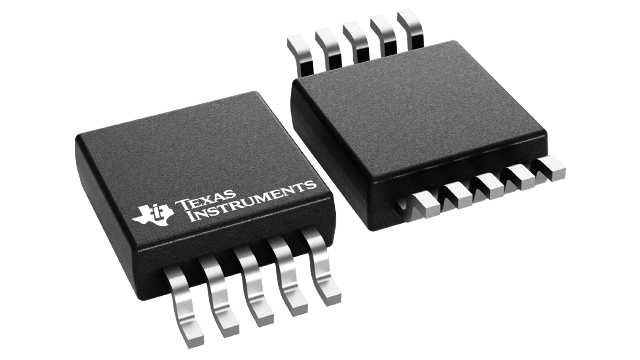

The TLV9052SIDGSR is a precision dual CMOS operational amplifier designed for low-voltage, low-power applications, offering rail-to-rail I/O, high slew rate, and excellent offset performance in a compact 10-VSSOP package.

Features

High Slew Rate (15 V/µs)

Fast transient response for dynamic signals

Unity-Gain Bandwidth (5 MHz)

Supports wide-band amplification

Low Quiescent Current (330 µA)

Minimizes power consumption in battery-powered designs

Rail-to-Rail I/O

Maximizes dynamic range from supply to ground

Low Input Offset Voltage (±0.33 mV)

Ensures high accuracy in precision circuits

Ultra-Low Input Bias Current (2 pA)

Ideal for high-impedance sensor interfaces

Wide Supply Range (1.8 V–5.5 V)

Flexible for various system voltages

Drive Capability (±50 mA/channel)

Supports moderate load-driving without external buffers

Temperature Range (–40 °C to +125 °C)

Suitable for industrial environments

Internal RFI/EMI Filtering & Unity-Gain Stability

Simplifies design by reducing external components

Applications

Portable Medical Instruments

In battery-powered medical monitors and wearable diagnostics, the TLV9052SIDGSR’s low quiescent current and high precision enable reliable, long-life operation without frequent battery changes.

Industrial Sensor Interfaces

Its ultra-low input bias current and rail-to-rail I/O make it ideal for conditioning signals from high-impedance sensors in harsh factory environments.

Data Acquisition Systems

The combination of wide bandwidth and high slew rate allows fast, accurate sampling in automated test equipment and general-purpose data loggers.

Why Choose the TLV9052SIDGSR Model

Exceptional Precision

±0.33 mV offset guarantees high-accuracy amplification.

Energy Efficiency

330 µA quiescent current prolongs battery life.

Robust Performance

15 V/µs slew and 5 MHz bandwidth handle demanding signals.

Versatile Voltage Range

Operates from 1.8 V to 5.5 V in diverse systems.

Compact Packaging

10-VSSOP footprint saves board space in dense layouts.

Integrated Filtering & Stability

Built-in RFI/EMI filters and unity-gain stability reduce external component count.

Advantages of Unit Electronics

✓

All products are original with factory Certificate of Conformity (COC) provided.

✓

Stock shipped directly from Hong Kong via FedEx, DHL, UPS, or SF Express for rapid delivery.

✓

Competitive pricing through first-hand sourcing and close partnerships with authorized factory agents.

✓

Strict procurement policy: no unknown channels, ensuring product authenticity and quality—quality is life.

✓

Prompt support with responses within one working day upon receiving inquiries.

FAQ

What is the supply voltage range of the TLV9052SIDGSR?

It operates safely from 1.8 V to 5.5 V, accommodating both low- and medium-voltage systems.

Which package does the TLV9052SIDGSR come in?

A compact 10-lead VSSOP (0.118" width) surface-mount package.

What temperature range does it support?

Industrial-grade: –40 °C to +125 °C.

Can it drive heavy loads directly?

Yes, each channel can source or sink up to ±50 mA.

Is it unity-gain stable?

Yes, it remains stable at gains as low as 1, simplifying design.

Does it include any internal filters?

Yes, integrated RFI/EMI filters improve noise immunity.

Where can I obtain the datasheet and ordering information?

Visit Unit Electronics’ TLV9052SIDGSR product page or the Texas Instruments website.

What is the typical quiescent current per channel?

Approximately 330 µA per dual amplifier.
