TPD2E001IDRLRQ1

• Qualified for Automotive Applications
• ESD Protection Exceeds
  • ±15-kV Human-Body Model (HBM)
  • ±8-kV IEC 61000-4-2 Contact Discharge
  • ±15-kV IEC 61000-4-2 Air-Gap Discharge
• Low 1.5-pF Input Capacitance
• Low 1-nA (Max) Leakage Current
• 0.9-V to 5.5-V Supply-Voltage Range
• Two-Channel Device

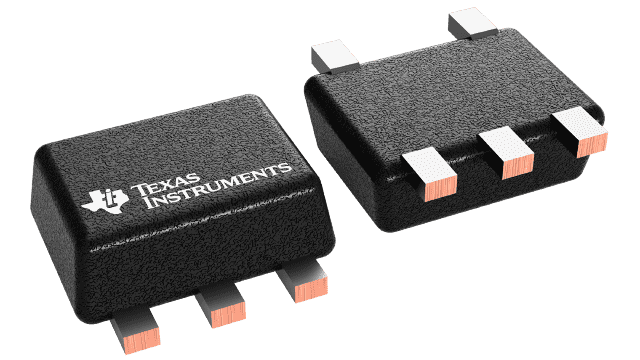

• Space-Saving DRL Package
• Alternate 3-, 4-, 6-Channel Options Available:
  TPD3E001, TPD4E001, and TPD6E001
• APPLICATIONS
  • USB 2.0
  • Ethernet
  • FireWire™
  • Video
  • Cell Phones
  • SVGA Video Connections
  • Glucose Meters

The TPD2E001 is a low-capacitance ±15-kV ESD-protection diode array designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steer ESD current pulses to VCC or GND. The TPD2E001 protects against ESD pulses up to ±15-kV Human-Body Model (HBM), ±8-kV Contact Discharge, and ±15-kV Air-Gap Discharge, as specified in IEC 61000-4-2. This device has a 1.5-pF capacitance per channel, making it ideal for use in high-speed data IO interfaces.

The TPD2E001 is a two-channel device intended for USB and USB 2.0 applications.

The TPD2E001 is available in the DRL package and is specified for –40°C to 85°C operation.
